Best 10 Woodworking Shelf Pin Jigs for Accurate Cabinet Shelves in 2026

Choosing the right woodworking shelf pin jig makes cabinet buildouts faster, cleaner, and far more repeatable. The best models help you drill straight, evenly spaced holes with less measuring and less room for error.

In this roundup, we focused on jigs that suit common cabinet layouts, support 1/4-inch and 5 mm hardware where possible, and offer the alignment and clamping features most DIYers and woodworkers need.

Best 10 Woodworking Shelf Pin Jig Picks for 2026

Edge-Guide 1/4" Pick – Kreg Shelf Pin Jig 1/4 Inch

If you want a woodworking shelf pin jig that focuses on fast, repeatable 1/4 inch holes, this Kreg guide keeps the setup simple. Its edge-aligned design helps you register from the cabinet edge for straight layouts, and the included bit, stop collar, and pins make it a compact kit for cabinet and furniture work.

Best For: DIYers and pros drilling consistent 1/4 inch shelf pin holes in cabinets and furniture.

Pros:

• Edge-aligned design helps keep hole rows straight and repeatable.
• Designed specifically for 1/4 inch shelf pin holes.
• Includes bit, indicator pin, stop collar, set screw, hex wrench, and four shelf pins.
• Compact, hand-powered tool that is easy to set up and carry.

Cons:

• Only set up for 1/4 inch holes, not 5 mm.
• Limited to shelf pin drilling rather than a broader cabinet-jig system.

For straightforward 1/4 inch cabinet shelving layouts, this jig is a focused choice that prioritizes consistency over extra features. It suits woodworkers who want a portable guide with the essentials included.

Dual-System Value Pick – Milescraft 1343 Shelf Jig

This woodworking shelf pin jig is a practical pick if you need flexibility between 1/4 inch and 5 mm holes. The clear body helps reduce alignment mistakes, the standard 32 mm spacing supports cabinet layouts, and the included drill bits and indexing pins make repositioning straightforward for longer runs.

Best For: Builders who want one jig for both 1/4 inch and 5 mm shelf pin systems.

Pros:

• Includes drill bits for both 1/4 inch and 5 mm shelf pin holes.
• Clear polycarbonate body helps you see placement and reduce errors.
• Standard 32 mm spacing with hardened metal guide bushings.
• Detachable fence offers 37 mm or 64 mm offsets.

Cons:

• More parts and setup options than a simple single-size jig.
• Primarily built for wood shelving layouts, not general-purpose drilling.

For shop users who switch between imperial and metric shelf pin patterns, this Milescraft jig offers a lot of utility in one package. The included bits and repositioning system make it especially appealing for repeat cabinet work.

Metric Cabinet Pick – Kreg Shelf Pin Jig 5 mm

For European-style cabinet layouts, this woodworking shelf pin jig is built around precise 5 mm holes and simple edge registration. It keeps the workflow compact and repeatable, and the included bit, pins, and setup hardware make it easy to use for shelf adjustments in wood cabinets.

Best For: Woodworkers building or retrofitting European-style cabinets with 5 mm shelf pins.

Pros:

• Designed specifically for precise 5 mm shelf pin holes.
• Edge-aligned design helps maintain straight, repeatable drilling.
• Includes bit, indicator pin, stop collar, set screw, hex wrench, and four 5 mm pins.
• Compact and hand-powered for simple setup and portability.

Cons:

• Only covers 5 mm shelf pin work, not 1/4 inch holes.
• Best suited to cabinet-side drilling rather than broader joinery tasks.

If your project calls for metric shelf hardware, this Kreg jig keeps the process focused and efficient. It is a clean choice for builders who want a dedicated 5 mm layout tool rather than a multi-size system.

Heavy-Duty Template Pick – Woodhaven 781 Shelf Pin Jig

This woodworking shelf pin jig is aimed at users who want a tough template with a fixed 15-hole layout. It handles either 5 mm or 1/4 inch holes with the right bit, and the phenolic body is thicker than acrylic templates, which makes it a strong option for tight cabinet work.

Best For: Woodworkers who want a durable, compact template for 5 mm or 1/4 inch shelf pin drilling.

Pros:

• Works with either 5 mm or 1/4 inch holes when paired with the correct bit.
• 15-hole layout with 1 inch spacing and 1-1/2 inch edge offset.
• Made from tough 7 mm phenolic for added durability.
• Compact size is useful in tight quarters and comes with a lifetime warranty against defects.

Cons:

• Uses separate bits or accessories that are not included.
• Less flexible than adjustable jigs for custom spacing.

For cabinet makers who value durability and a simple, fixed template, the Woodhaven 781 has a lot going for it. It is especially appealing when you want a compact jig that can be used in assembled cabinets or other tight spaces.

Editor’s Pick – Milescraft CabinetMate Shelf Pin Drilling Jig

If you want a woodworking shelf pin jig that focuses on clean, centered drilling, the Milescraft 1316 CabinetMate is built around precision and convenience. It includes a 1/4 in. self-centering brad point bit, index pins, and built-in storage, making it a practical option for cabinet work and other straight-hole tasks.

Best For: Woodworkers who want a compact, accuracy-first jig for shelf pins and related cabinet layout work.

Pros:

• Includes a self-centering 1/4 in. brad point bit for more accurate hole placement.
• Comes with 2 index pins and built-in storage for the bit and accessories.
• Can also mark locations for euro-style hinges.
• Designed for straight holes in wood cabinet projects.

Cons:

• Only includes a 1/4 in. drilling setup.
• Potential buyers should confirm their project dimensions before ordering.

Overall, this is a straightforward shelf pin jig for users who value precision and a simple accessory package. Its compact storage and self-centering design make it especially appealing for repeat cabinet drilling tasks.

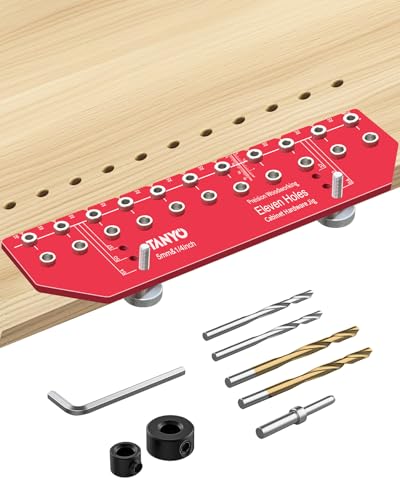

Most Versatile – TANYO 11-Hole Shelf Pin Jig

The TANYO 11-Hole Shelf Pin Jig is a strong fit if you need a woodworking shelf pin jig that speeds up repetitive cabinet drilling. Its aluminum build, built-in clamping function, and included 1/4 in. and 5mm drill bits are geared toward efficient, straight-hole layout work on larger projects.

Best For: DIYers and builders who want faster multi-hole drilling with built-in clamping and dual-size compatibility.

Pros:

• Drills 11 holes at once for faster cabinet and wardrobe work.
• Made from sturdy aluminum alloy for durability and rust resistance.
• Includes 1/4 in. and 5mm drill bits plus depth limiting rings.
• Built-in clamping function helps keep the jig fixed without extra wrench hassle.

Cons:

• Bulkier than simpler single-hole guides.
• Project users must work within the 11-hole template format.

This jig stands out for speed and convenience on larger cabinet jobs. If you want fewer setup steps and the ability to work in both 1/4 in. and 5mm systems, it offers a very practical drilling workflow.

Best Modular Option – GOINGMAKE Spliceable Shelf Pin Jig

The GOINGMAKE Shelf Pin Jig is a practical woodworking shelf pin jig for users who want precision plus expandability. It supports 1/4 in. and 5mm shelf pin holes, uses a hardened drill guide, and can connect with additional jigs when you need to drill more holes in less time.

Best For: Woodworkers who want a connectable jig for standard cabinet layouts and repeat drilling.

Pros:

• Works with both 1/4 in. and 5mm shelf pin holes.
• Hardened drill guide is designed for clean, accurate drilling.
• Fast connectable design lets you join two or more jigs together.
• Includes anti-slip base and quick-assemble position bracket for easier setup.

Cons:

• Only one jig set is included, so expansion requires additional purchases.
• Best suited to users who can work within the 32 mm hole spacing system.

For cabinet builds that need repeatable spacing and the option to scale up, this jig offers a thoughtful balance of accuracy and flexibility. The connectable design is its biggest advantage for time-saving workflow.

Combo Cabinet Jig – 2-in-1 Shelf Pin & Hinge

If you want a woodworking shelf pin jig that also handles concealed hinge layout, this 2-in-1 aluminum alloy template keeps cabinet drilling in one compact tool. It supports 7 straight shelf pin holes in one pass and includes 1/4 inch and 5mm drill bits, making it a practical pick for DIY cabinet work and basic shop builds.

Best For: Cabinet DIYers who want one jig for both shelf pins and concealed hinges.

Pros:

• Combines shelf pin drilling and hinge cup drilling in one jig
• Drills 7 shelf pin holes at 1-1/4 inch spacing in one pass
• Includes 1/4 inch and 5mm drill bits plus hinge screws
• Made from aluminum alloy for a sturdy build

Cons:

• Only drills 7 holes at a time, so longer rows take more setups
• Designed around common US concealed hinges, not every hinge style

This is a straightforward all-in-one option if you want repeatable shelf pin spacing and a built-in hinge template. It is especially useful when you are trying to keep cabinet layout tools simple without giving up drilling accuracy.

Expanded Row Jig – 11-Hole Shelf Pin & Hinge

This woodworking shelf pin jig is built for faster cabinet setup thanks to its 11-hole layout and self-contained clamping design. It still doubles as a concealed hinge jig, and the kit includes the drill bushings, bits, stops, and positioning pieces needed to get started right away.

Best For: Users who want a longer shelf-pin drilling run with a full accessory kit.

Pros:

• 11-hole template drills a full row in one pass
• Works as both a shelf pin jig and hinge jig
• Includes 1/4 inch and 5mm bushings and drill bits
• Comes with positioning pin, stop collars, and offset screws

Cons:

• Larger template may be more than needed for small projects
• Heavier accessory set adds more parts to keep track of

If you need speed and a more complete setup kit, this model stands out for drilling longer rows efficiently. The 11-hole layout is the biggest advantage here, especially for repeat cabinet work where fewer repositioning steps matter.

Accessory-Rich Jig – Adjustable Shelf Pin Template

For woodworking shelf pin jig buyers who want a feature-heavy kit, this two-in-one adjustable template includes drill bits, bushings, stop collars, and positioning hardware. It is designed for seven holes at 1-1/4 inch spacing, with edge distance options that help with different shelf installation layouts.

Best For: Woodworkers who want a complete, ready-to-use jig kit with lots of included hardware.

Pros:

• 2-in-1 design handles shelf pins and concealed hinges
• Includes 14 detachable drill guide bushings
• Comes with 1/4 inch and 5mm drill bits and stop collars
• Aluminum alloy construction is made for durability

Cons:

• Only drills seven shelf holes per pass
• Best suited to common US concealed hinges rather than specialized hardware

This jig focuses on versatility and included accessories rather than maximum hole count. If you want a durable cabinet hardware template that arrives with most of what you need, it is an easy one to consider.

How We Picked the Best Woodworking Shelf Pin Jig

We looked for a Woodworking Shelf Pin Jig that balances accuracy, ease of setup, and versatility. Priority went to tools that support standard shelf-pin sizing, consistent hole spacing, sturdy construction, and edge alignment that reduces layout mistakes. We also considered whether a jig is better for fast repeat drilling or for occasional cabinet work.

Quick Comparison

For most cabinet projects, the main decision is whether you want a dedicated 1/4-inch or 5 mm jig, or a more flexible model that handles both. Compact jigs are often easier to store and faster for a single cabinet size, while larger or spliceable jigs can cover more height and improve workflow on taller cabinet runs.

Key Buying Factors for a Woodworking Shelf Pin Jig

Hole Size and Compatibility

Match the jig to the shelf pins and hardware you actually use. The two most common choices are 1/4-inch and 5 mm, and buying the wrong size can leave shelves loose or hardware incompatible.

Spacing and Layout

Standard 32 mm spacing is useful for many European-style cabinet systems and adjustable shelving. Some jigs use different increments, so confirm the layout matches your cabinet plans before you buy.

Alignment and Clamping

Edge alignment helps keep holes parallel and centered where you need them. Self-contained clamping or secure registration can make a big difference if you work alone or drill multiple cabinets in a row.

Material and Durability

Aluminum and phenolic-bodied jigs typically offer better stability than lightweight plastic tools. Stiffer materials help maintain straight holes, especially when drilling through harder stock or repeated cabinet runs.

Versatility

Some Woodworking Shelf Pin Jig models are dedicated shelf-hole tools, while others combine shelf pin and hinge drilling functions. A combo jig can save space and money if you build cabinets often, but a dedicated jig may be simpler if shelf holes are your main task.

Who Should Buy Which Woodworking Shelf Pin Jig?

If you want a straightforward setup for standard cabinet shelving, choose a dedicated jig sized for your pin system. If you need maximum flexibility across different projects, look for a model that supports both 1/4-inch and 5 mm holes. If you build larger cabinets or repeat the same hole pattern often, longer or spliceable designs can save time. For occasional DIY use, a compact, easy-to-align jig is usually the smartest pick.
